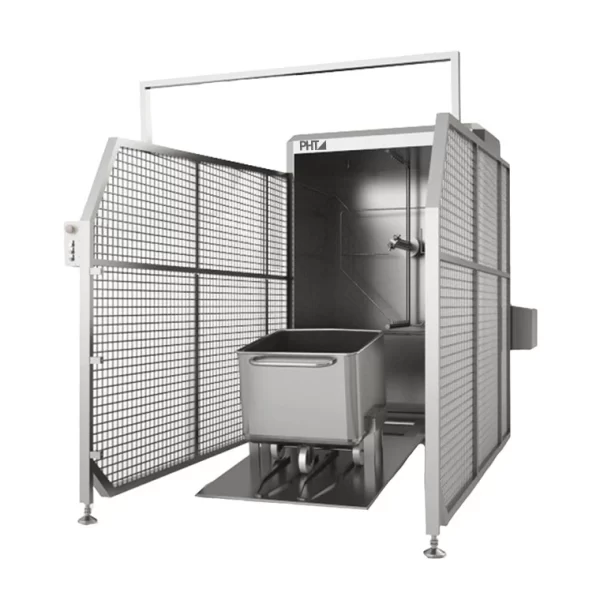

Trolley cleaning system BM200

29 August 2024

▪ Cleaning for lifting and loading trolleys or Paloxes
▪ Capacity of approx. 25 trolleys or 20 paloxes per hour
▪ Steam or electrically heated
▪ Adjustable cycle duration depending on the degree of soiling
▪ Highly efficient rotary washing arm driven by the water pressure
▪ Hydraulically driven door
▪ Complies with the high CE requirements as well as EU and USDA regulations

Category:

Hygienic cleaning of lifting and loading trolleys

The BM200 cleaning system is ideal for efficient cleaning of standard trolleys or Paloxes with a capacity of 25 trolleys or 20 Paloxes. The cycle time can be adjusted depending on the degree of soiling. A sieve filter additionally catches the coarse dirt and keeps the water clean for a long time, which flows back into the main tank and reduces water consumption. The hydraulically driven door is used to load the containers and to close the wash zone.

Technical data

  • Power supply: 400 V 50 Hz
  • Control voltage: 24 V DC
  • Total output: Approx. 40 kW
  • Water connection: R 1″ AG /fresh water/
  • Water connection: R 1″ AG /rinse water/
  • Water drain: DN 50
  • Line pressure: Min. 3 bar-max. 6 bar
  • Capacity: max 20 BW/hour
  • Own weight: Approx. 1400 kg
  • Dimensions (LxWxH): approx. 4890 x 2620 x 2900 mm
